PRIMA CS, INTEGRATED POWER SUPPLY, ERGO HEAD

Brand	LABOMED

Brand

LABOMED

Pour plus d'information n'hésitez pas à nous contacter

📞 +213 23 32 03 20 📩 contact@bota-dz.com

Description

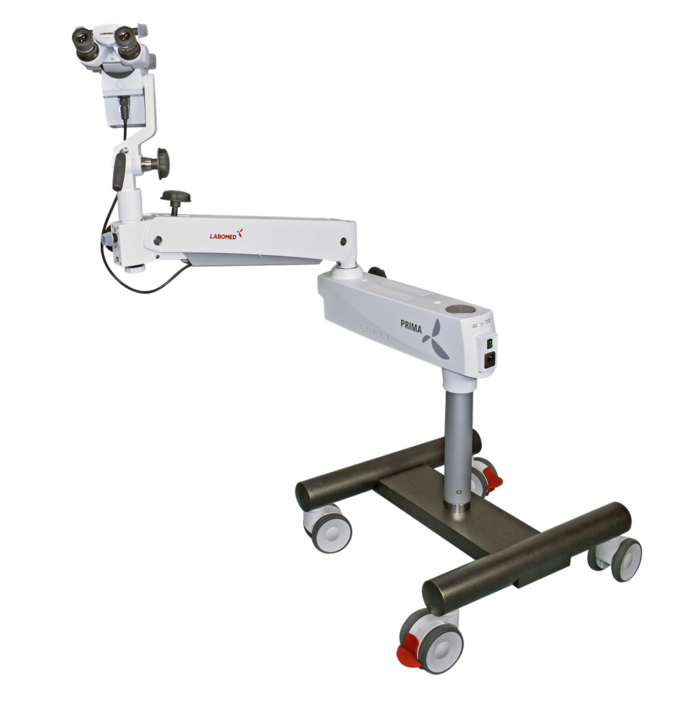

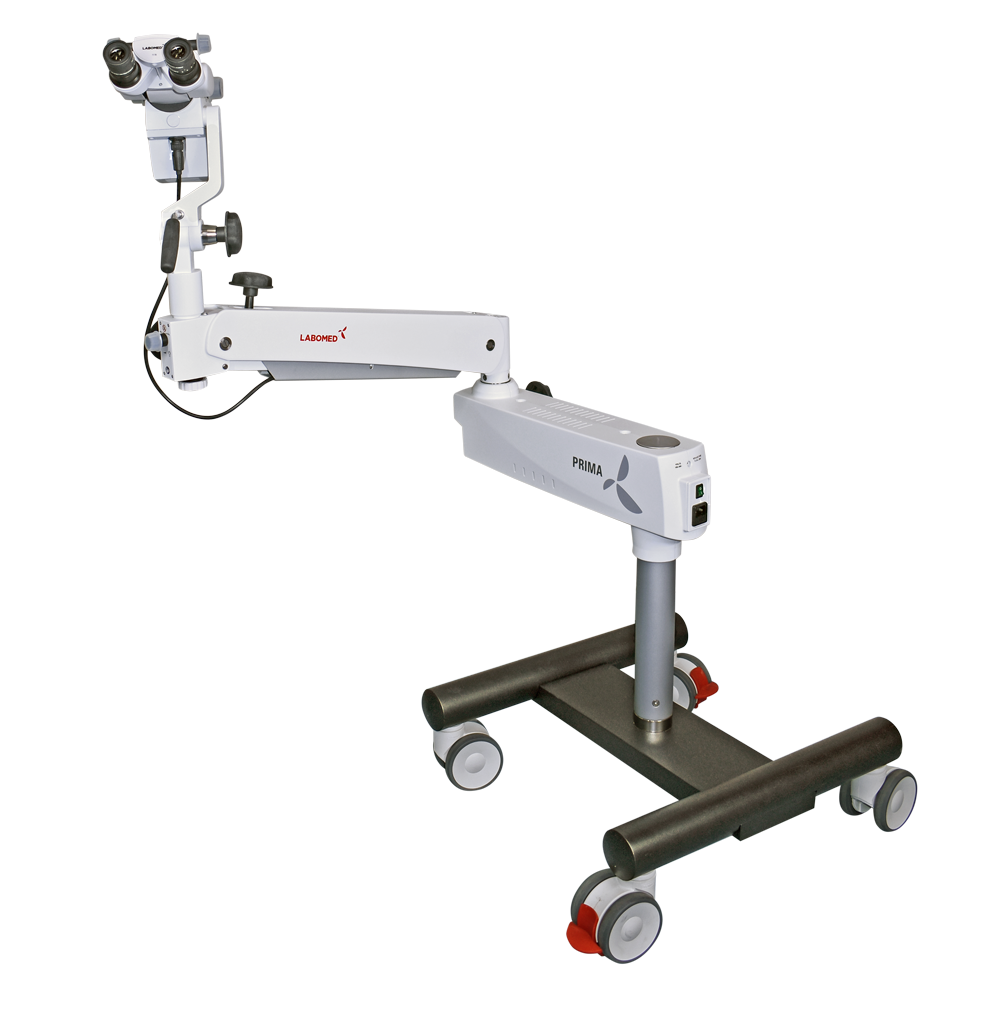

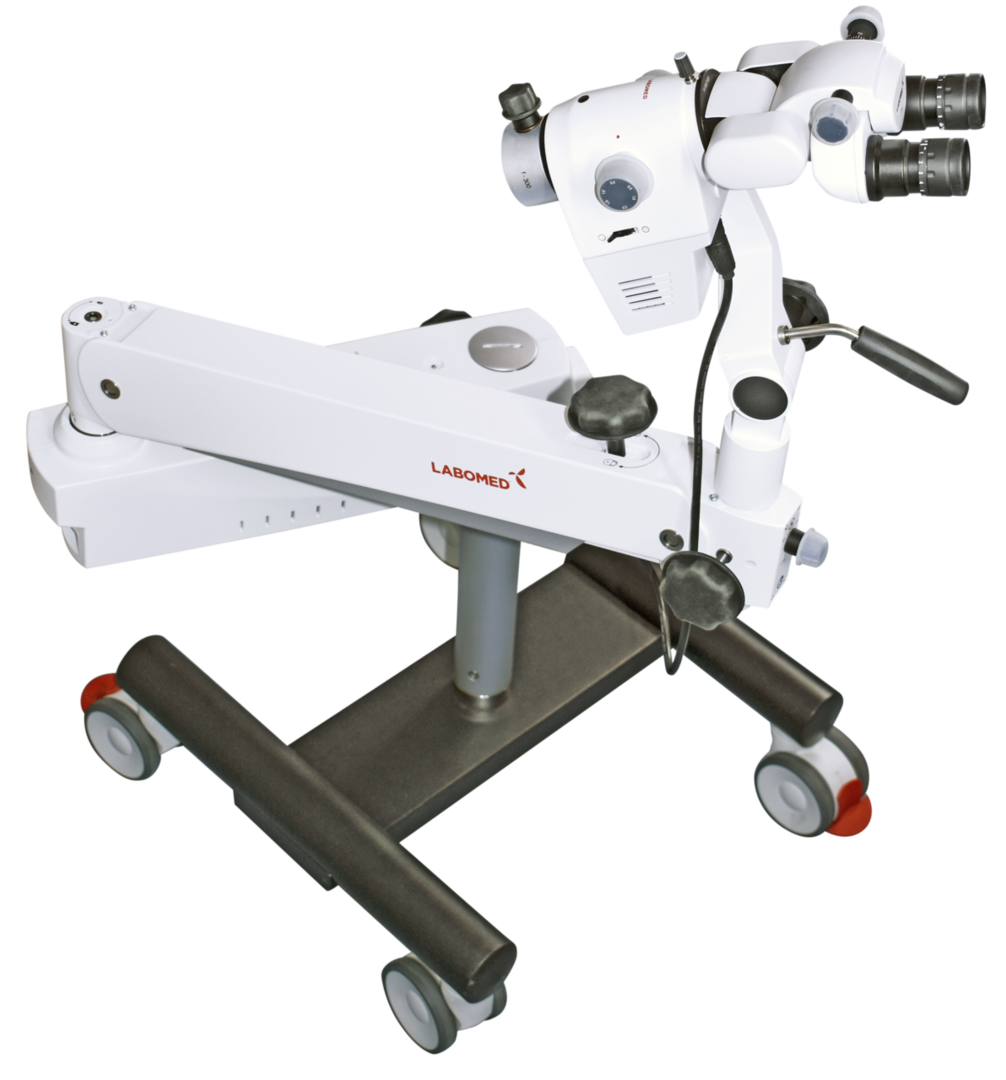

Prima CS Microscope with Ergo head, CMO 300 mm and H-base

Delivering efficiency, performance and convenience to today’s OBGYN. The Prima CS is a versatile solution for surgical and diagnostic work in gynecology. A meticulously designed optical system and built-in high power LED illumination module come together to provide a more streamlined microscope. A suspension and swivel arm mounted on a stable base brings greater flexibility to both clinical and surgical environments.

A single 27-watt LED intelligently drives the illumination system to deliver over 75,000 Lux at a carefully selected color temperature of 5700K, making Prima CS’s eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours.

An Apochromatic 5-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through a range of long working distance CMOs. To address digital documentation needs, a host of digital SLR, video camera and CCD adapters are available with the ProLine™.

MICROSCOPE SPECIFICATIONS

Prima CS microscope with an intelligent LED illumination system

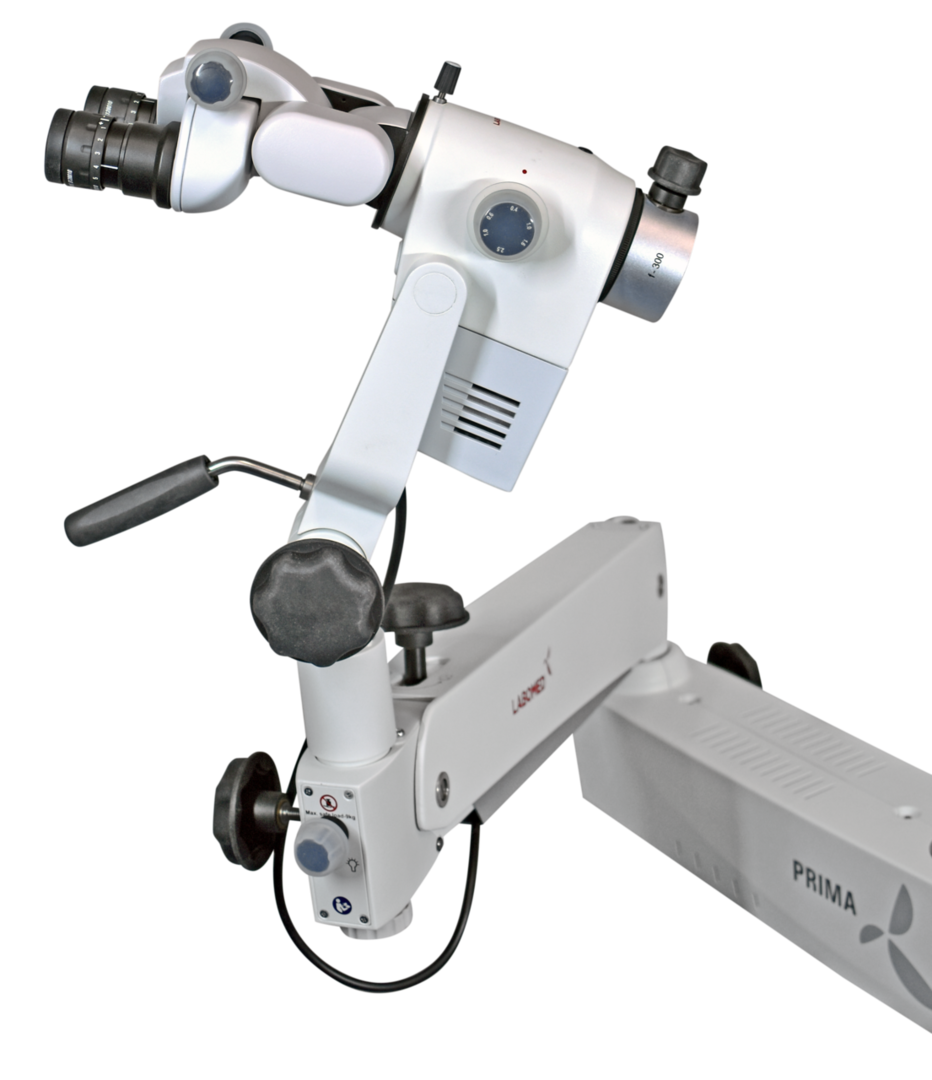

Binocular tube: Ergo head > moving over 210º
Eyepiece: WF 10X/18mm with foldable eye guards, diopter adjustment ± 5mm
Optional: WF 12.5X/18mm
Apochromatic magnichanger: 5 step > 0.4X, 0.6X, 1.0X, 1.6X and 2.5X
Objective: f-300mm, manual focus
Illumination: 27W LED, 75,000 Lux
Built-in-Filters: Green
Vertical movement of arm: ± 250 mm

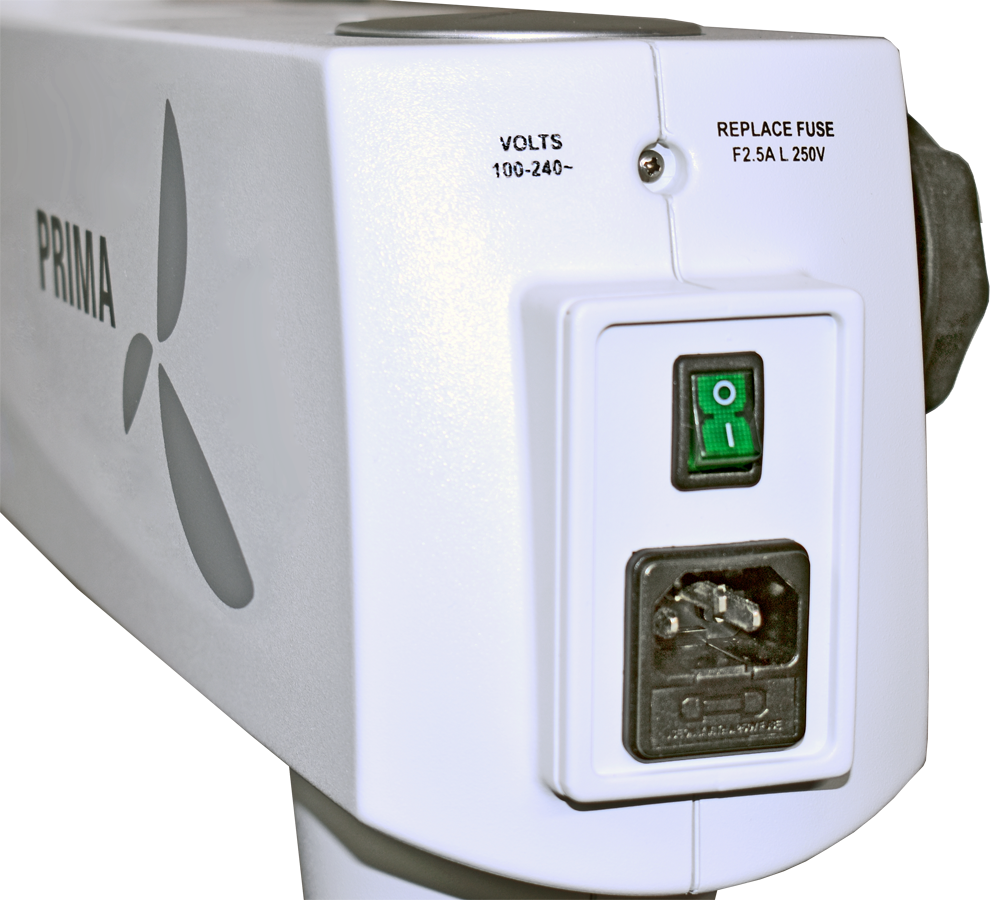

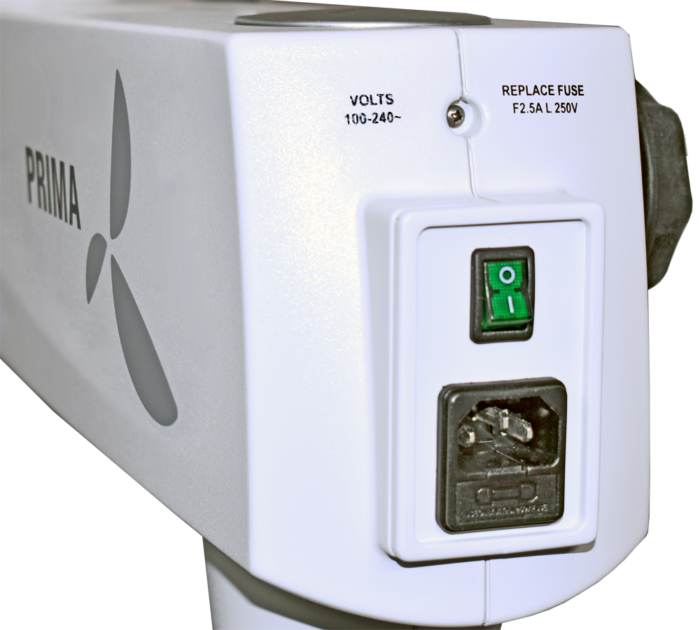

Power supply: 100-240V, 50/60HZ, 1.6 Amp
Weight of complete microscope: microscope with carrier (2.8 kg), swivel arm (8 kg) and base with pillar (40 kg)
Optional accessories: beam splitter, CCD and USB cameras

PACKAGE CONTENTS:
> Prima CS microscope Ergo head (210º)
> Objective CMO 300 mm
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover

DIMENSIONS (mm)

CONFIGURATIONS

About brand

The company specializes in the production of intelligent dual-mode 3D endoscope camera system, 4K UHD endoscope camera system, digital Full HD endoscope camera system, endoscope remote control system, gas insufflator, irrigation pump, medical monitors, medical LED cold light source, instruments and other general-purpose minimally invasive solutions, which can fully meet the needs of customers in clinical departments.

Shanghai Shiyin Photoelectric Instrument Co., Ltd. was established in 2009.
