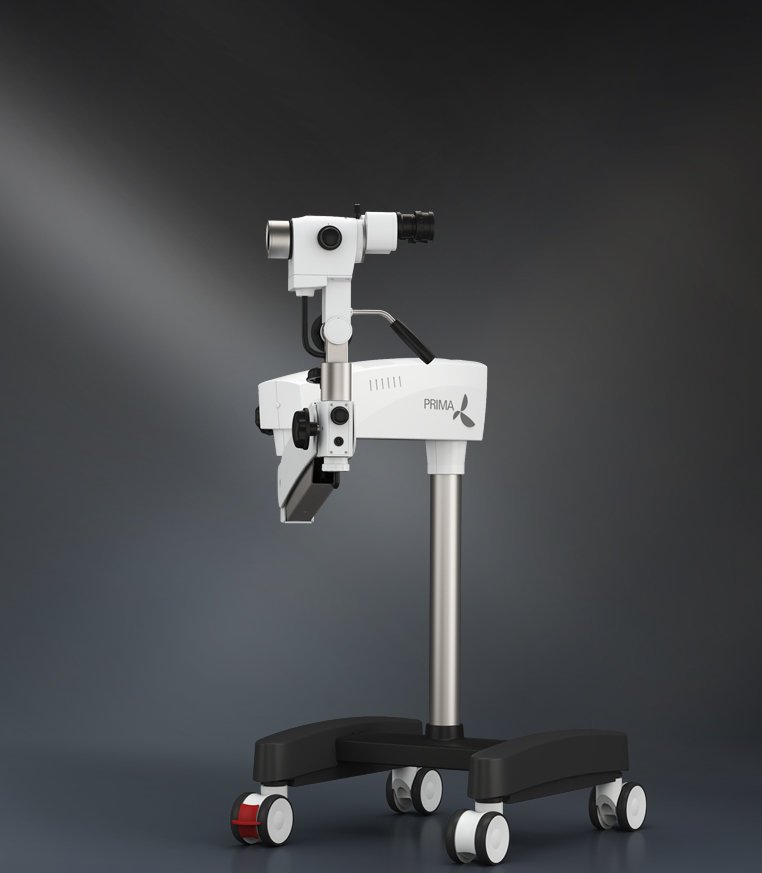

Prima GN Microscope with 90º head, CMO 300 mm and H-base
Advanced screening technology for early detection; the Prima GN is an ideal solution for surgical and diagnostic work given its superb optical and mechanical performance, ensuring many years of carefree use. With an intelligent LED illumination system that runs long and cool, an Apochromatic Galilean optical system and fluid articulation. The Prima GN integrates seamlessly with any OBGYN practice.
A super bright 50W LED delivers over 135,000 Lux at a color temperature range closest to natural daylight. With a run time of 60,000 hours of bulb service life, bulb changes and storing spares are no longer a matter of concern. Electronics built directly into the swivel arm make the Prima GN a compact solution.
An Apochromatic Galilean optical system produces sharp contrast and resolution at every step. Proprietary MaxLite™ sputtered coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics. Fine focusing control is provided through a range of long working distance CMOs.
Doctors can use a digital SLR or video camera with the Prima GN, thanks to a wide selection of adapters available through LABOMED’s ProLine™. A proprietary camera provides an excellent solution with all-in-one high definition imaging, streaming and capture options. Real-time streaming can be achieved with a flat panel monitor mounted conveniently to the Prima GN arm.
A durable mobile H-base is easily transported from one room to the next on robust castor wheels, enabling multi-room use and convenient storage. Alternatively, the system can be mounted directly to an exam chair, on a short column for quick diagnostic work, or in an over-the-shoulder floor mount configuration.
MICROSCOPE SPECIFICATIONS
- Prima GN microscope with an intelligent LED illumination system
- Binocular tube: straight viewing tube 90°
- Eyepiece: WF 10X/18 mm with retractable eye guards, diopter adjustment ± 5 mm and diopter lock
Optional: 12.5X/18mm; fixed eye guards - Apochromatic magnichanger: 5 step > 0.4X, 0.6X, 1.0X, 1.6X and 2.5X
- Objective: f-300, manual fine focus
- Illumination: 50W LED, 135,000 Lux
- Built-in-Filters: Green
- Vertical movement of arm: 500 mm
- Microscope carriers: straight carrier
- Power supply: 100-240V, 50/60HZ, 1.6 Amp
- Stand height: 984 mm
- Stand height (horizontal position): 775 mm
- Microscope stands: straight bracket
- Full microscope weight: approx. 80 Kg
- Optional accessories: beam splitter, Proline range of camera adapters
PACKAGE CONTENTS:
> Prima GN microscope 90º head
> Objective CMO 300 mm
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover
DIMENSIONS (mm)
CONFIGURATIONS
