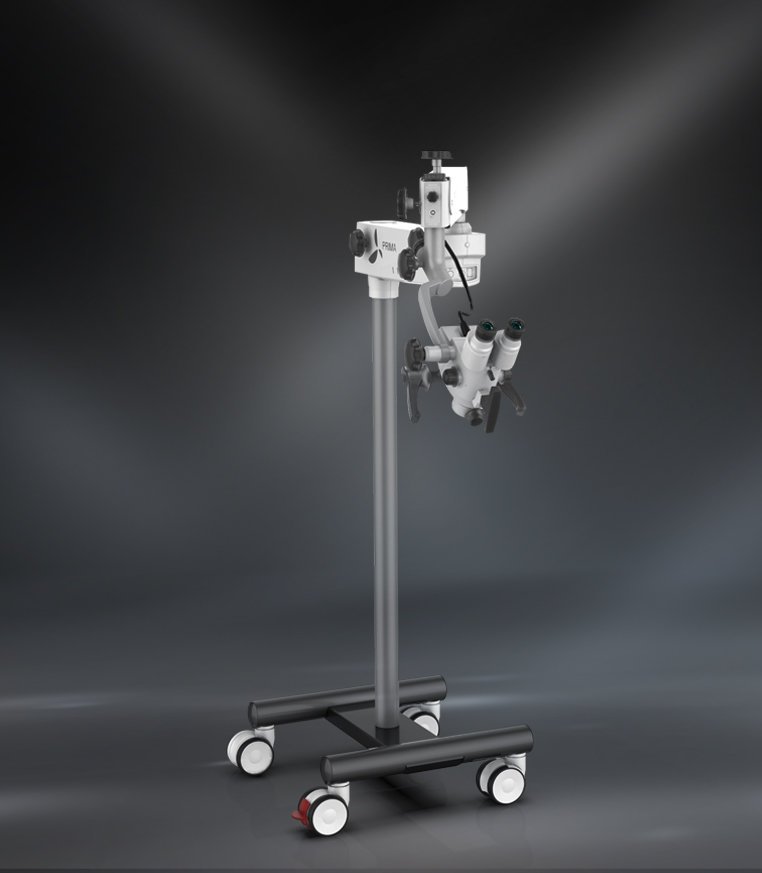

Prima Mµ ENT microscope with 90º head, CMO 250 mm and H-shape base

The Prima Mµ is intended for routine inspection and in screening clinical environments. A well-designed apochromatic optical system with a high output LED built directly into the microscope housing provides users with a compact solution. The arm system has been carefully designed to mitigate vibration and lower the system’s centre of gravity to provide a more stable, lighter weight solution.

A single 27 watt LED intelligently drives the illumination system to deliver over 75,000 Lux at a carefully selected color temperature of 5700K, making Prima Mµ’s eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours.

An Apochromatic 3-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch-resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through long working distance NuVar 10. The Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.

The ProLine™ features a host of digital SLR, video camera and CCD adapters. All helping to simplify documentation and communicating treatment plans to patients. A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.

MICROSCOPE SPECIFICATIONS

• Prima Mu ENT microscope with an intelligent LED illumination system
• Mounting system: heavyweight H-shape base on lockable castor wheels, swivel arm mounted on a pillar
• Suspension arm: 980 mm
• Magnichanger: 3 step magnichanger with magnification 0.6x, 1.0x and 1.6x
• Viewing bodies: binocular tubes 90º tiltable, IPD range 55-75 mm, f=170 mm
• Objective: lens f=250 mm with a manual fine focus control knob
• Eyepieces: WF adjustable eyepiece 10x/FN 18 mm with eye guards
• Observation head: ergonomic T-handle for observation head
• Microscope carriers: straight down mounted but also delivered with 155º carrier
• Illumination: in magnichanger integrated illumination 27W LED, up to 50,000 hours of LED lamp lifetime, 75,000 Lux
• Input: AC 115-240V, 50/60Hz
• Filter: green filter with a filter holder
• Vertical movement of arm: 600 mm
• Fuse: quick-acting fuse 1.0 Amp
• Standard accessories: dust cover for microscope observation head and illumination box

PACKAGE CONTENTS:

> Prima Mµ ENT microscope
> Objective CMO 250 mm
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover

DIMENSIONS (mm)

CONFIGURATIONS
